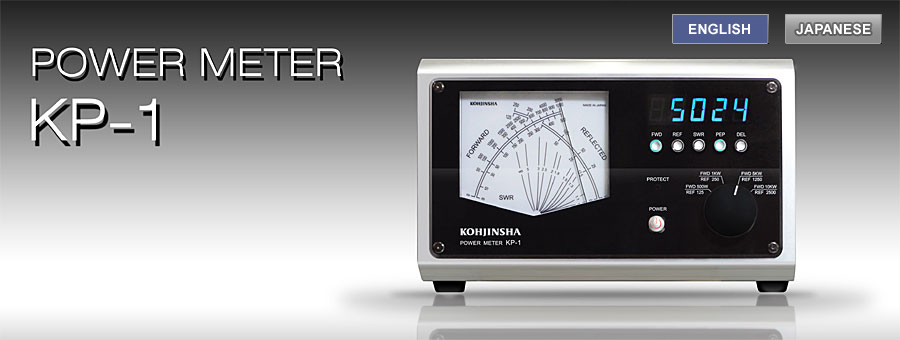

|■ KP-1 is a SWR and Power meter employing current transformer covering the frequency range of 1.8MHz through 30MHz.
■ A large scale analogue cross meter and 7 segment LED allows for easy reading.
■ Meter has a built-in white LED back lighting allowing for readouts in low level light.
■ Meter has four ranges to measure power from 10W to 10KW. Digital display is not affected by changing measuring range.

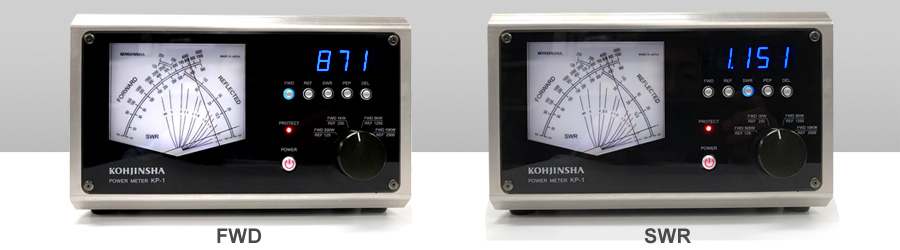

■ Digital display also indicates SWR value.
■ PEP power can be read with adjustable hold time while operating SSB/CW.
■ Over-load protection circuit prevents your linear amplifier and antennas from getting damage by accident. User can
adjustable trigger value of SWR(1.4 〜 2.5)to active the protection circuit when SWR exceeds the level.
Protection circuit opens the TX GND line between exciter and linear amplifier.

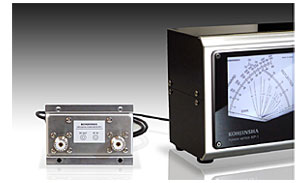

|■RF pickup unit and meter.
RF pickup unit can be placed separately with connecting wire.

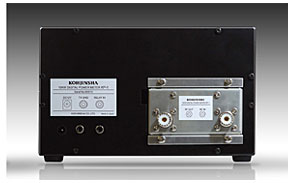

|■KP-1 rear view

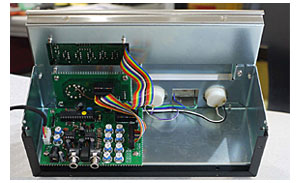

||■KP-1 inside view
|KP-1 Product specification|
|Frequency range||1.8〜30MHz||Insertion loss
||Leas than 0.1 dB|
|Power measurement range||10〜10KW||Input-and-output impedance
|Electric power range||FWD 500W /1KW / 5KW / 10KW
REF 125W / 250W / 1250W / 2500W
|Input-and-output||M type （SO-239）|
（A projection thing is not included.）
|Power measurement accuracy||±７％（Full-scale value ）
|SWR measurement minimum RF power||Approx 10W||Accessories
★ The delivery price may change by COVID-19 situation.
Please ask us quotation !
|Shipment from October
You can use PayPall
